Powder Metallurgy Sintered Iron Guide Bushing With Oil Immersion

Place of Origin China
Brand Name WEIWO
Certification ISO9001:2008
Model Number Bushing
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details carton box+pallet, or as per customer's requirements.
Delivery Time 25 working days for new samples
Payment Terms T/T, Western Union, L/C
Supply Ability 70,000pcs per month
Product Details
Product Name Bushing Material Customized
Plating Oil Immersion Quality Control 100% Inspection
Application Textile Machine Treatment Steam
Hardness HRB60-80 Shipping By Sea, By Air Or By Express Company
High Light

Sintered Iron drill guide bushing


Oil Immersion Guide Bushing


porter cable guide bushing

Leave a Message
Product Description

Powder Metallurgy Parts Oil Sintered Iron Guide Bushing With Oil Immersion


Size customizable
Certification ISO9001,TS16949
Material Iron powder(Iron 99.9%)
Density 5.7-5.9g/cm3
Static load 500N/mm2
Dynamic load 13N/mm2
Max linear speed 5m/s
Volume of oil impregnation 22%
Hardness 35HB
Friction coefficient 0.025μ
Traction resistance 18-26N
Elongation 2-4%
Max thermal emperature -20~120
Application textile machines, electric tools and absorbers of auto and motorcycle



P/M Copper and Copper Alloys

P/M Iron and Carbon Steel

Iron And Carbon Steel

Iron-Copper And Copper Steel

Sinter Hardened Steel

Commix Low Alloy Steel

Surface treatment

Sand Blasting

Zinc/Chrome Plating

Rust-preventive treatment (steaming treating)



Powder Coating


Packaging Details
Anti-rust Paper, Carton, Wood Case or Pallet

1. Inner Packing
For small products: 100pcs-200pcs per sealed plastic bag.
For bigger products: 2pcs-10pcs per plastic film roller (depends on the product size)

2. Outer Packing
8pcs-300pcs per carton (depends on the product size)

3. Shipment Packing
18-24 cartons per wood case or pallet, shockproof and safe for transportation.


Guide bushing
Raw material: F50 U3 60 sinter powder metal
Hardness: 70-90HRB
Density: 6.0g/cm3
Net weight is 21.44g
Our main sinter parts category:
Valve Plate, Helix Gear, Air Cylinder, ABS Sensor Rings, Pulley, shock absorber spare parts, sprocket wheel, Spur Gear
Lock Accessory, Oil Pump Rotors & Gears, Sprocket Wheel, Other Sintered PM Products
Material Available and Chemical Composition:
P/M Copper and Copper Alloys
P/M Iron and Carbon Steel
Iron and Carbon Steel
Iron-Copper and Copper Steel
Iron-Nickel and Nickel Steel

Low Alloy Steel
Commix Low Alloy Steel
Sinter Hardened Steel
Diffusion Alloyed Steel
Copper Infiltrated Iron and Steel
1. We are professional powder metallurgy manufacturer
2. Process: mixing--compacting--sintering--resizing--cleaning--vacuum oiling--packing
3. Material: steel, copper, steel copper, bronze, alloy
4. High precision, 100% test assure good quality
5. We can make the products according to customers' drawings or requirement
6. Short deliver time
7. The products we produce are widely used in automobile, motorcycle and many other fields like transmission gear, spur gear, bevel gear, helical


gear, sleeve, copper sleeve, sleeve bearing, bushing, bush, pulley, timing pulley, structural parts, powder metallurgy parts, nut, auto parts,


sintered parts, rotor and stator etc.
1. Automotive Part
2. Motorcycle Part
3. Pump Parts
4. Locomotive Parts
5. Machinery Parts
6. Tool Parts
Competitive Advantage:
1. Very tight tolerance and high density
2. Uniform heat treatment and steam treatment
3. Precise metal-working finishing
4. Higher mechanical performance
5. Professional technology service
Picture show:

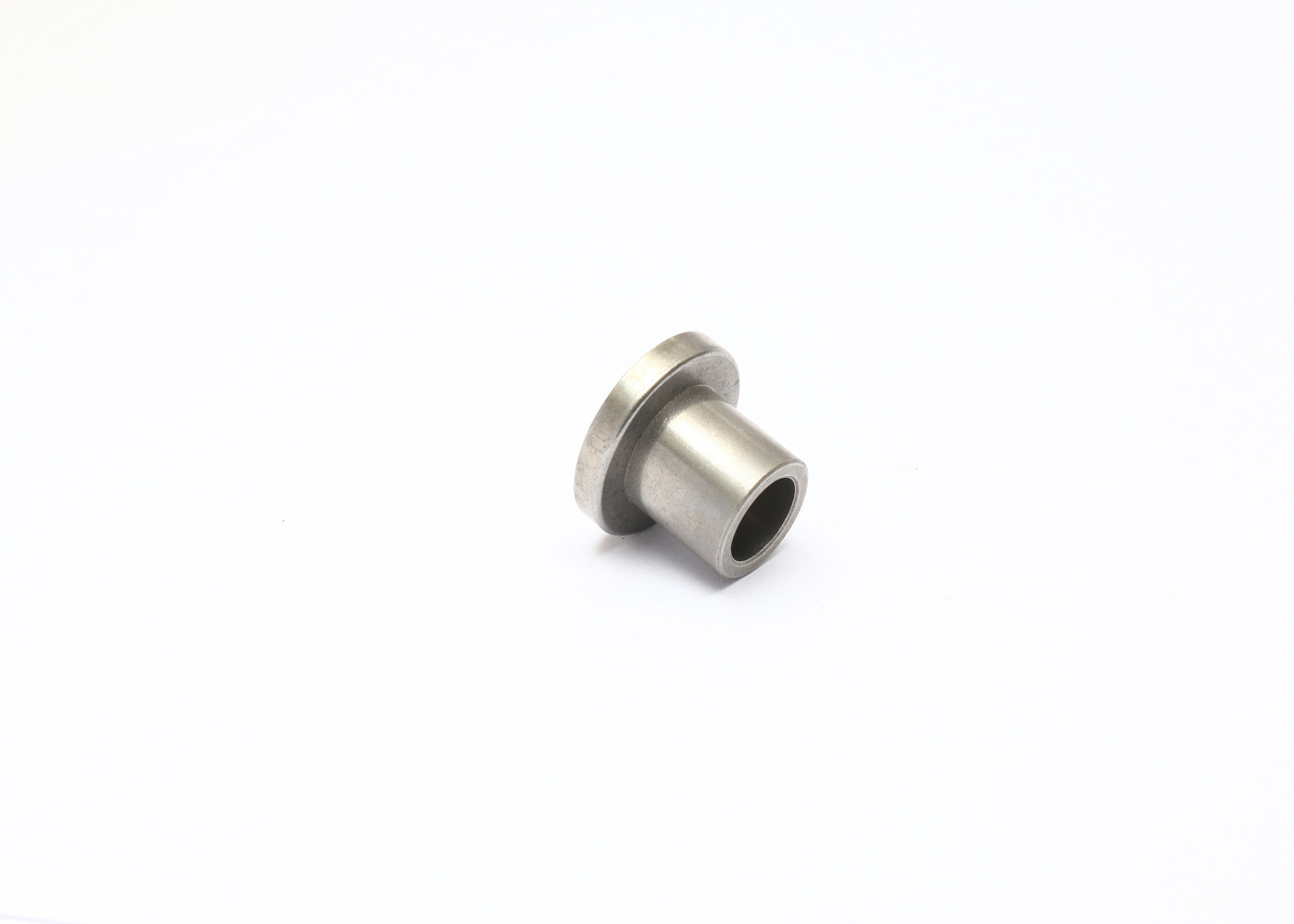

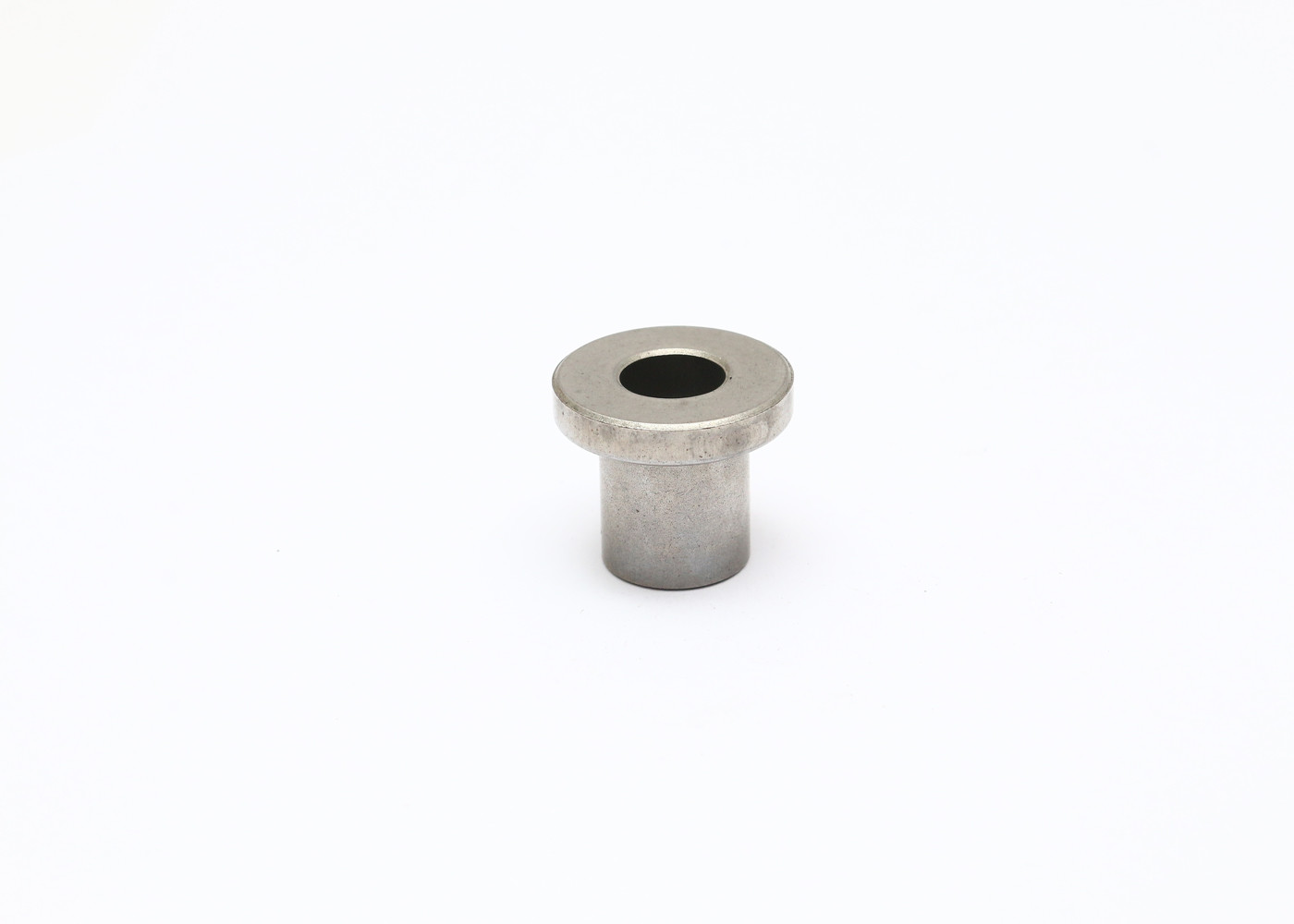

Powder Metallurgy Sintered Iron Guide Bushing With Oil Immersion 0
