Alloy Steel Sintered Powder Metallurgy Parts 150T HRB 90 Sintered Metal Parts

Factory Customized High Quality Powder Metallurgy Structural Parts With Good Price

Specifications:

Description:

We are specializing in powder metallurgy, shock absorber pistons, PTFE products and different parts

used in automobile and motorcycle. Our company has a technical team to research and develop the

automaticmachines. Our products spread out all over the country, and we supply components to Korea,

America andJapan. Our products are well known at home and abroad with a good reputation.

Powder metallurgy products

1. We are professional powder metallurgy manufacturer.

2. Process: mixing--compacting--sintering--resizing--cleaning--vacuum oiling--packing

3. Material: steel, copper, steel copper, bronze, alloy.

4. High precision, 100% quality assurance with competitive price

5. We can make the products according to customers' drawings or requirement.

6. Short deliver time.

7. The products we produce are widely used in automobile, motorcycle and many other fields: like

 transmission gear, spur gear, bevel gear, helical gear, sleeve, copper sleeve, sleeve bearing, bushing,

bush, pulley, timing pulley, structural parts, powder metallurgy parts, nut, sintered parts, auto parts, rotor and stator etc.

Manufacturability:

1. Auto Mechanical Press: 50T, 100T, 140T

2. Hydraulic Press: 100T, 315T, 600T, 800T

3. Sinter furnaces, including one harden Sinter Furnace

4. Heat treatment: Carbonitriding quenching and high frequency quenching

5. Ultrasonic clearing and auto de-burring

6. In-house tooling making: EDM, wire cutting machine

7. Strength in machining: Machine center, CNC milling, CNC lathe, two end lapper etc

Test Ability:

1. Carbon sulfur determinator

2. Metallurgic microscope

3. Hydraulic universal material tester

4. Hardness testers

5. Pneumatic measuring instrument

6. Measuring projector

7. Gear testing instrument

8. Electrical profile meter

Applications:

1. Automotive Part

2. Motorcycle Part

3. Pump Parts

4. Locomotive Parts

5. Machinery Parts

6. Tool Parts

The Advantage of Powder Metallurgy Process

①Cost effective
The final products can be compacted with powder metallurgy method, and no need or can shorten the processing of machine. It can save material greatly and reduce the production cost.

②Complex shapes
Powder metallurgy allows to obtain complex shapes directly from the compacting tooling, without any machining operation, like teeth, splines, profiles, frontal geometries etc.

③High precision
Achievable tolerances in the perpendicular direction of compacting are typically IT 8-9 as sintered,improvable up to IT 5-7 after sizing. Additional machining operations can improve the precision.

④Self-lubrication
The interconnected porosity of the material can be filled with oils, obtaining then a self-lubricating bearing: the oil provides constant lubrication between bearing and shaft, and the system does not need any additional external lubricant.

⑤Green technology
The manufacturing process of sintered components is certified as ecological, because the material waste is very low, the product is recyclable, and the energy efficiency is good because the material is not molten.

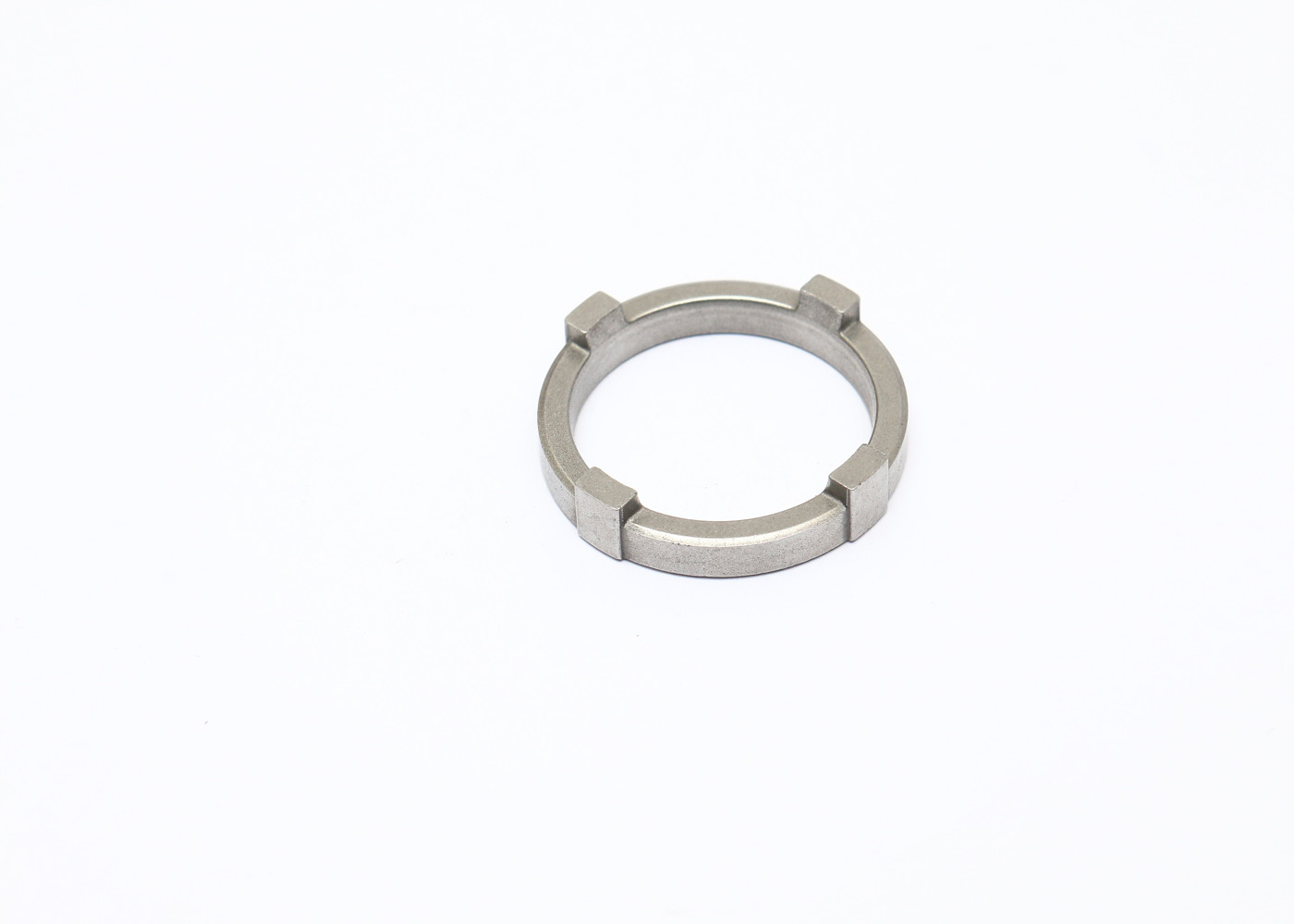

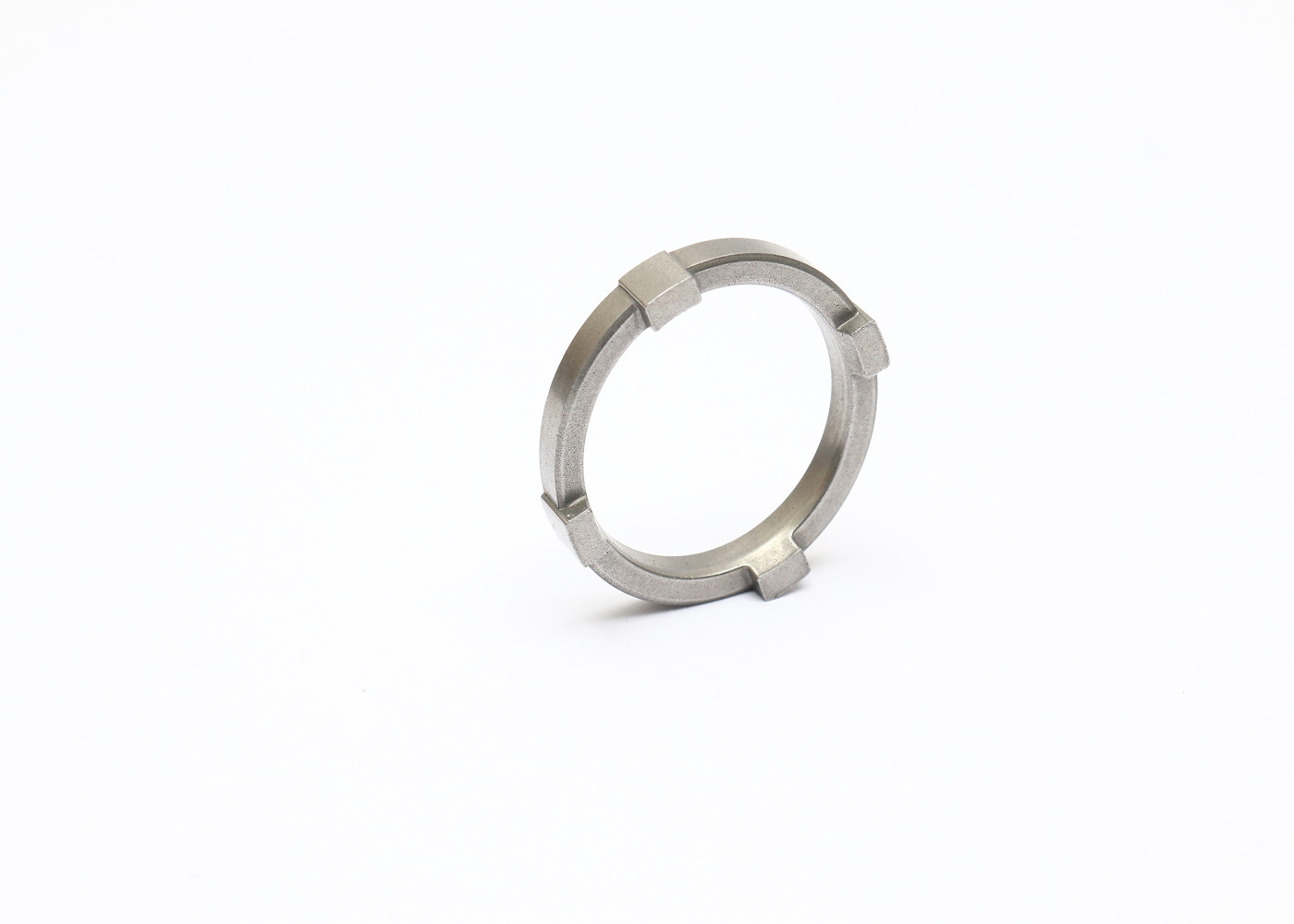

Picture show:
