Filled PTFE Machining Plastic And Rubber Parts 25MPa PTFE Ring Gasket
| Place of Origin | Ningbo , China |
|---|---|
| Brand Name | WEIWO |
| Certification | ISO9001:2008 |
| Model Number | PTFE-J0730 |
| Minimum Order Quantity | 1,050pcs |
| Price | discuss after drawing confirm |
| Packaging Details | Packed in plastic box one by one, then in carton with standard export package |
| Delivery Time | 10 working days for new samples |
| Payment Terms | T/T, L/C |
| Supply Ability | 50,000pcs per month |
Product Details
| Product Name | PTFE Parts | Material | 100% PTFE |
|---|---|---|---|
| Density | 2.18 G/cm3 | Report | SGS , ROHS |
| Color | White | Shape | Sheet , Rod , Tube |
| Water Absorption | <0.05% | Tensile Strength | 25MPa |
| High Light | 25MPa PTFE Ring Gasket,anti corrosion PTFE Ring Gasket,CNC machined PTFE Ring Gasket |
||
Product Description
Good Lubricating PTFE Ring Gasket Compounds filled PTFE machining parts
Specifications:
| Tensile strength @ break | >50% |
|
Coefficient of friction (on steel and ground) |
0.08-0.10 |
|
Charpy impact strength (at 23℃) |
No break |
| Tensile modulus of elasticity | 700MPa |
|
Material |
PTFE |
|
Color |
White, black or any other |
|
High and low temperature resistance |
-200 - 260°C |
|
Processing |
Machine or by mold |
|
Dynamic friction coefficient |
0.2-0.3 |
Only high temperature element fluorine, alkali metals and it works on all the other thick, dilute inorganic acids, alkalis, esters had no influence
Description:
Smooth surface
High mechanical strength
High temperature application range
Chemical and corrosion resistance
Low coefficient of friction
Fine finish by CNC machined
We can manufacture various PTFE irregular shaped parts by compression molding and CNC machining
for the applications that require high purity, chemical resistance and thermal properties. Quality meets or
exceeds the highest standards in this field.
PTFE has excellent corrosion resistance, but under load will creep phenomenon of cold flow, ordinary
PTFE materials are hard, toughness is poor, but our factory the production of PTFE Washer is made
through a special process modification, comprehensive performance is greatly improved, especially the
creep resistance.
PTFE Washer Product Category:
PTFE gasket, PTFE bars, PTFE pads, PTFE insulation sleeve, PTFE tape, PTFE insulation pads
Testing Data Contrast of Some Typical Filled Products
| Item | Pure PTFE | 60% Bronze | 20% Glass Fiber | 15% Glass Fiber 5% Graphite | 20% Caobon Fiber | Unit |
| Density | 2.18 | 3.9 | 2.26 | 2.22 | 2.01 | g/m3 |
| Tensile strength | 276 | 127 | 175 | 158 | 189 | Mpa |
| Elongation at break | 238 | 101 | 207 | 205 | 92 | % |
| ROCKWELL Hardness | 3.2 | 33.8 | 6.4 | 11.3 | 32.1 | - |
| Friction Coefficient | 0.13 | 0.18-0.2 | 0.2-0.24 | 0.15-0.17 | 0.16-0.18 | - |
| Bending Strength | 207 | 280 | 210 | 225 | 320 | °C |
Applications:
A. electrical insulation parts
B. sealing parts
C. automobile parts
D. corrosive fluid conduit
E. connector accessories
Competitive Advantage:
1. Low MOQ: It can meet your business very well
2. OEM accepted: Just provide drawing or sample
3. Good service: We treat clients as friends
4. Good quality: We have strict quality control system. Good reputation in the market
5. Quality Control: Approved by GB/T 19001-2008/ ISO9001:2008
6. Fast and cheap delivery: We have big discount from forwarder(Long Contract)

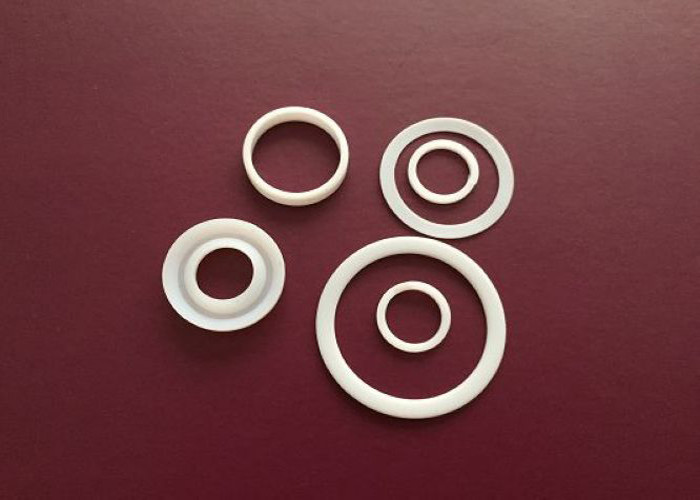

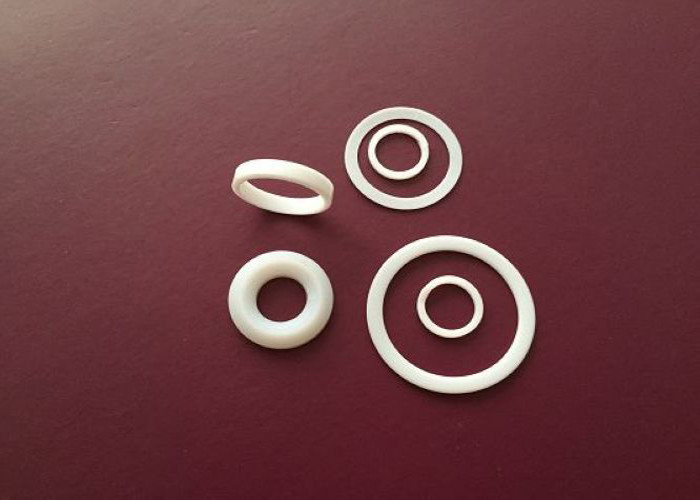

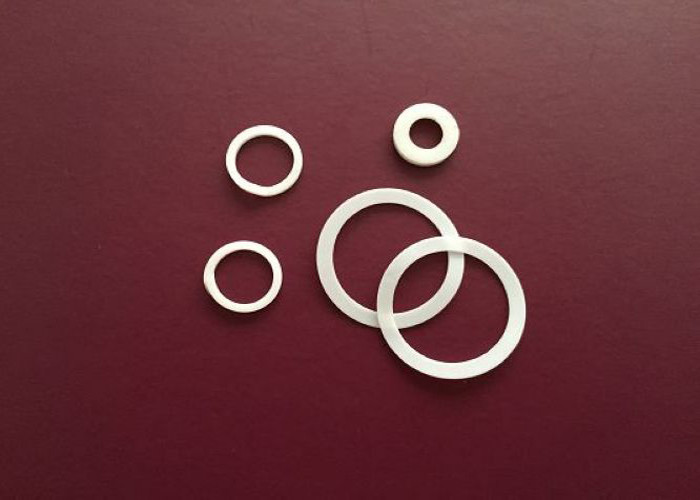

Samples show:
 |
