Hydraulic Straight Through One Way Throttle Valve Pressure 350 Kg/cm2

Place of Origin NINGBO, CHINA
Brand Name WEIWO
Certification ISO9001:2008
Model Number WW-CIT-03
Minimum Order Quantity 10 sets
Price negotiable
Packaging Details plastic bag +carton + wooden pallets
Delivery Time 10 work days
Payment Terms L/C, , T/T
Supply Ability 5,000 sets per month
Product Details
Type Direction Valve Material Carton Steel
Port Size Standard Fluid Phospate Ester
Media Oil Power Hydraulic
Structure Regulating Mounting Torque 60-70NM
High Light

70nm one way throttle valve

,

350 Kg/Cm2 one way flow control valve

,

35MPa one way throttle valve

Leave a Message
Product Description

Part Name: Max Pressure 350 Hydraulic Straight-through One-way Valve Solenoid Directional Valve





Specifications:

TYPE PORT SIZE Amm Bmm FLOW L/min Max pressure Kg/cm2
WW-CIT-03 3/8” 74 23 40 350
WW-CIT-04 1/2” 81 29 60
WW-CIT-06 3/4” 91 35 100
WW-CIT-08 1” 114 46 150
WW-CIT-10 1 1/4” 130 58 250
WW-CIT-12 1 1/2” 133 60 300
WW-CIT-16 2” 154 74 400



Mounting site Optional
Flow direction One direction throttles, another direction back flow through the check valve
Pressure medium Mineral oil (HL,HLP) according to DIN51524; phosphate(HFD-R)
The oil pollution level The maximum oil pollution level according to NAS1638 class9
Working medium temperature range ℃ -20~+80℃
Viscosity scope mm2/s 10~800mm/s
The maximum operating pressure 35MPa
Drifter diameter 6 10 16 22
Weight kg 1.0 3.1 4.7 8



One-way valve is the fluid can only flow along the water inlet, but the outlet medium can't return. The throttle valve is a valve that controls the flow of fluid by changing the throttle section or throttle length. The superposition combination of the throttle valve and the check valve in parallel is the superposition check valve.



The throttle valve and the one-way throttle valve are simple flow control valves. In the hydraulic system of the fixed pump, the throttle valve and the overflow valve can be combined to form three throttle speed control systems, that is, the oil inlet throttle speed control system System, oil return line throttle speed control system and bypass throttle speed control system.



There are two types of check valves: straight-through and right-angle. The straight-through check valve is installed on the pipeline with a threaded connection. Right-angle check valves have three forms: threaded connection, plate connection and flange connection.



Main Features:

-Direct solenoid actuated directional spool valve high performance version
-Wet pin DC or AC solenoids with removable coil
-Solenoid coil can be rotated through 90 °
-It is not necessary to open the pressure tight
chamber when changing the coil
-Electrical connections either as individual or central connections
-Hand override, optional



Product name proportional flow pressure control valve
Model WW-Z2FS6-30B
Place of Origin Ningbo, China
Size 10/20
Max. Flow up to 600 L/min
Max. Pressure up to 31.5 Mpa
Material Casting
Fluid Mineral oil or Phosphate ester
Temperature range -30~+80℃
Power Hydraulic
Color Customer's request
Certificate ISO9001



Parts we can produce:

Collecting valve   Maintaining valve
Throttle valve Relief valve Solenoid directional valve
Speed regulation valve Pressure reducing valve Manual reversing valve
Diverter valve Pressure valve Check valve
Flow valve Cartridge valve Hydraulic control one-way valve
Collecting valve Stop valve Solenoid valve
Pilot valve Reverse check valve Superposition valve
Direct acting relief valve Pilot check valve Directional valve
Pilot relief valve Sequence valve Pilot sequence valve
Pilot reducing valve Balance valve Direct acting sequence valve



Company Information
1.We have many years of experiences in manufacturing CNC machines, and plastic injection molding machines.
2.We have quiet office enviroment and we have independent R&D ability.
3.We have efficient production department and strict quality control department to supply good quality products all over the world.



Our product range:

Hydraulic pump parts, Cylinder block,Press pin,Piston motor,Piston shoe,Snap ring, Piston pump, Retainer plate, Coil spring, Gear pump, Ball guide, Disk springCharge pump, Valve plate, Barrel washer, Pilot pump, Shoe plate, Oil seal, Vane pump, Bearing plate, Frication plate, Repair OEM parts, Swash plate, Steel plate, Motor spare parts, Drive shaft, Metal.



Our Advantages
1.Be of long standing factory;
2.Have enough professional engineer;
3.OEM with professinal employees;
4.Mechanical and test equipments:
5.100% factory testing and inspection personnal in accordance with international standards for the high-frequency sampling,to ensure the quality of products manufactured;



Packaging & Shipping

1. Goods are packed with export standing standard.

2. Goods will be delivered on time.

3. Goods can arrive at the destination safely.

4. derivery time: within 30 days after the payment.

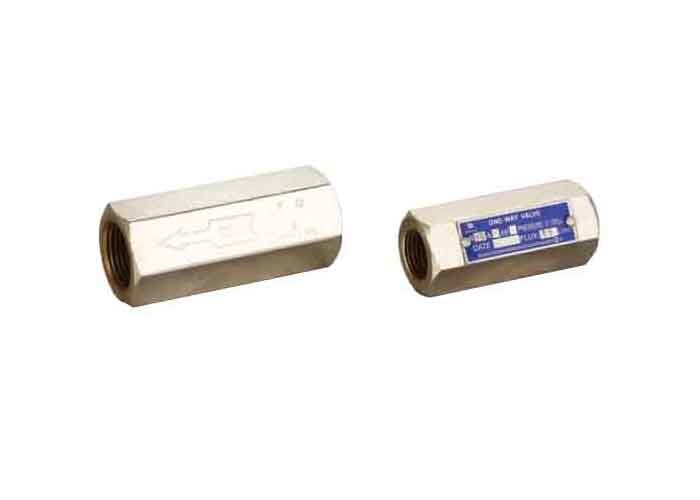

Hydraulic Straight Through One Way Throttle Valve Pressure 350 Kg/cm2 0

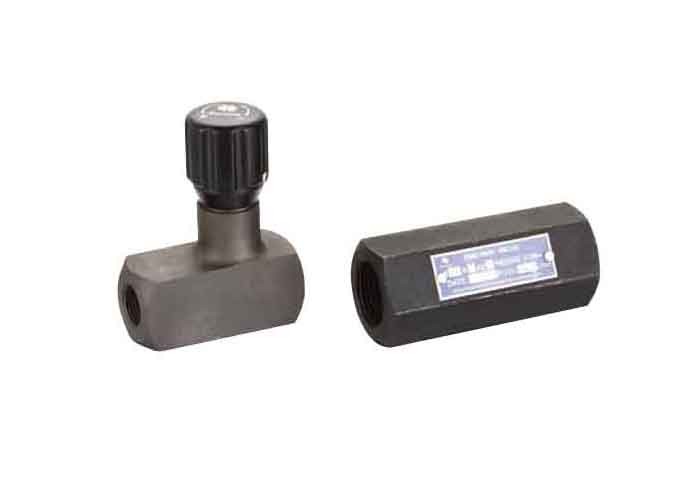

Hydraulic Straight Through One Way Throttle Valve Pressure 350 Kg/cm2 1
