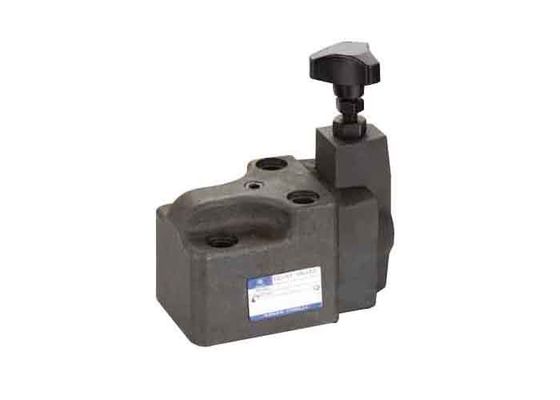

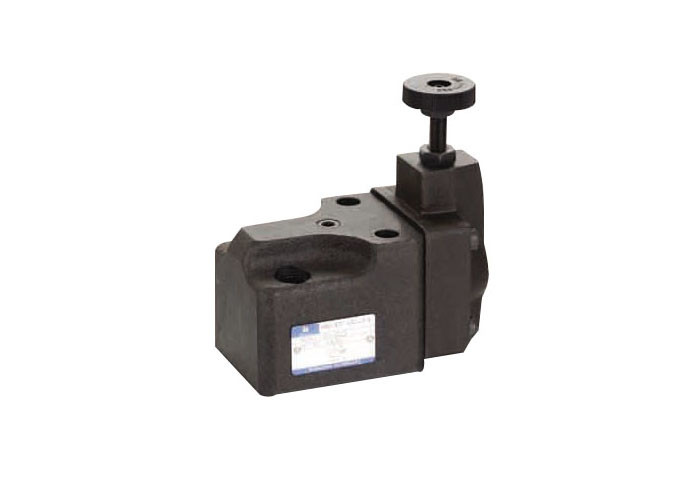

Regulating Thread Hydraulic Pilot Operated Relief Valve 200l/Min
| Place of Origin | NINGBO, CHINA |
|---|---|
| Brand Name | WEIWO |
| Certification | ISO9001:2008 |
| Model Number | WT-06-2-10 |
| Minimum Order Quantity | 10 sets |
| Price | negotiable |
| Packaging Details | plastic bag +carton + wooden pallets |
| Delivery Time | 10 work days |
| Payment Terms | L/C, , T/T |
| Supply Ability | 5,000 sets per month |
Product Details
| Type | Valves | Structure | Regulating |
|---|---|---|---|
| Port Size | 3/4" | Max. Flow | 200l/min |
| Pressure Range | 10-140kgf/cm2 | Power | Hydraulic |
| Oil Temperature | -30~80℃ | ||
| High Light | 31.5 Mpa Hydraulic Pilot Operated Relief Valve,200l/min solenoid operated relief valve,Regulating Hydraulic Pilot Operated Relief Valve |
||
Product Description
Part Name: Thread Type Hydraulic Pilot Operated Relief Valve
Pressure control valves of type are pilot operated pressure relief valves. They are used for the limitation of the operating pressure. Pressure relief valves basically consist of a main valve with main spool insert and pilot valve with pressure adjustment elements.
Features:
1. This type of relief control valves are always used in a simple hydraulic system, and can be used to maintain constant pressure in a hydraulic system
2. Pilot operated relief valves are simple structures and economical.
3. Remote control and unloading are permitted by vent circuit.
4. It is designed for protecting the hydraulic system from excessive pressure.
5. Casting iron bodies provide strength and durability for longer life.
6. Internal hardened steel components also provide longer life.
Specifications:
| Product name | hydraulic pilot operated safety electromagnetic relief valve |
| Model | WT-06-2-10 |
| Place of Origin | Ningbo, China |
| Size | 20*20*20 (L*W*H) |
| Max. Flow | up to 600 L/min |
| Max. Pressure | up to 31.5 Mpa |
| Material | Casting |
| Fluid | Mineral oil or Phosphate ester |
| Temperature range | -30~+80℃ |
| Power | Hydraulic |
| Color | Customer's request |
| Certificate | ISO9001 |
Specifications:
| Model Numbers | Max. Pressure | Pressure Adj. Range | Max. Flow | Weight kg | Bolt Size | ||
| Thread type | Gasket type | kgf/cm2 | kgf/cm2 | l/min | XT- | XG- | XG- |
| WT-04 | XG-03 | 250 |
1: 7-70 2:10-140 3:15-250 |
60 | 2.6 | 4.7 |
M12x70x2pcs M12x90x2pcs |
| WT-06 | XG-06 | 200 | 4.0 | 6.6 |
M16x60x2pcs M16x80x2pcs |
||
| WT-10 | - | 400 | 6.7 | - | - | ||
How to order:WT-06-2-10
| Model code | Descriptions | |
| 1 | W |
Series Number Pilot operated relief valves |
| 2 | T |
Type of Mounting T: Thread type G: Gasket type |
| 3 | 06 |
Port Size 03:3/8” 06:3/4” |
| 4 | 2 |
Pressure Adj. Range 1:7-70kgf/cm2 2:10-140kgf/cm2 3:15-250kgf/cm2 |
| 5 | 10 | Design Number |
Parts we can produce:
| Collecting valve | Maintaining valve | |
| Throttle valve | Relief valve | Solenoid directional valve |
| Speed regulation valve | Pressure reducing valve | Manual reversing valve |
| Diverter valve | Pressure valve | Check valve |
| Flow valve | Cartridge valve | Hydraulic control one-way valve |
| Collecting valve | Stop valve | Solenoid valve |
| Pilot valve | Reverse check valve | Superposition valve |
| Direct acting relief valve | Pilot check valve | Directional valve |
| Pilot relief valve | Sequence valve | Pilot sequence valve |
| Pilot reducing valve | Balance valve | Direct acting sequence valve |
